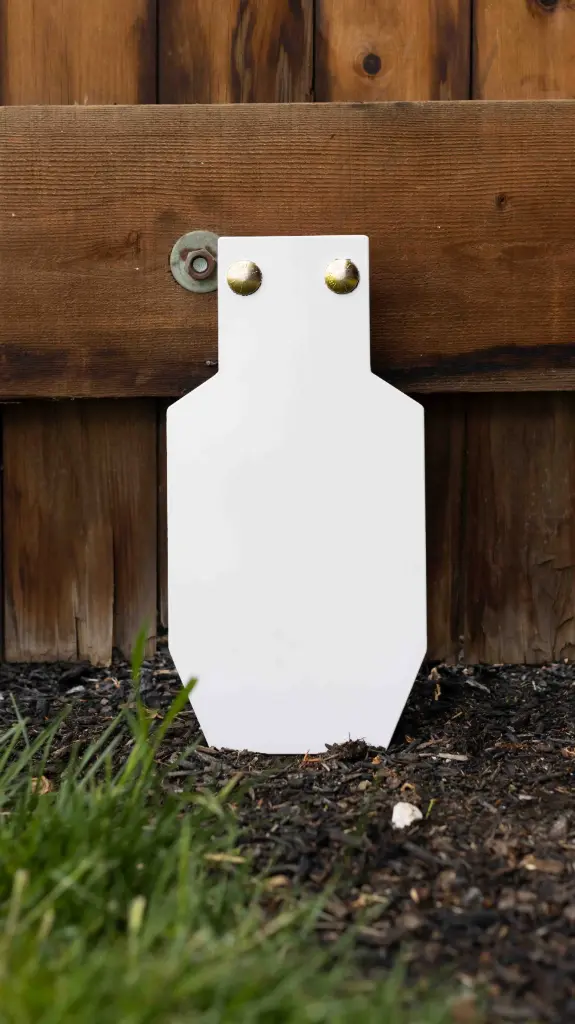

AR550 Reduced C-Zone Target Plate

https://www.tatargets.com/web/image/product.template/6793/image_1920?unique=714a837
(0 review)

The Reduced C Zone A-DAP Target plate is a close range rifle rated target plate. Users can mount this to our Gen 5 A-DAP Top Bracket  or our Adjustable Armored Post and one of our Portable Bases. Additionally, this target plate interfaces with our A-DAP Tee Post Mount. If you are looking for a cost effective, close range rifle rated target (30 yards with most light rifle calibers, 50 yards with most medium rifle calibers), then this might be the perfect plate for you. This plate measures approximately 8″w X 16″H. It is 33% smaller than a C Zone Target Plate. Further, this plate rings very loud when struck by any caliber, making shot verification instant and easy. The AR550 we utilize for this plate is purchased from a premium mill in Sweden.

If you need a full Reduced C Zone system (Our Mini A-DAP system), please click HERE. This target plate does not include mounts or bases when purchased separately.

$ 195.00 195.0 USD $ 195.00

Not Available For Sale

  • Silhouette
  • Strike Plate Thickness

This combination does not exist.

Finished Target Plate Variable
Contact Us
Silhouette: Reduced C-Zone

Share

Reduced C Zone Target for the A-DAP system.

Our AR550 Reduced C Zone Plate is a reduced C Zone shape and size. It measures approximately 8″ wide and 16″ tall. It is designed to function with either our A-DAP Top Bracket or our A-DAP Armored Posts. Additionally, this plate may be used with our A-DAP Tee Post Mount for a cost effective range solution. The back side of the C Zone target plate features our CNC formed adjustable angles. The adjustable angles allow multiple angles of forward lean. On the most aggressive setting, users can position the target to an astounding 38 degrees of forward lean.

Forward Lean Dispels Fragmentation And Absorbs Bullet Energy.

Bullets fragment upon impact of our AR550 Reduced C Zone Plate. Having a forward lean AND movement does a few things for the system. First, it helps to absorb the impact of the incoming rounds. This is simply physics. Because forward lean and movement absorbs energy better, the system experiences a much longer life over fixed plates. Once the bullet impacts and fragments, the movement and lean deflect the fragmentation directly towards the ground. Because of the meticulously designed position of the plate over the base, fragmentation entirely misses the targets base. The AR550 Reduced C Zone Plate packs all these features into one amazing target plate. This target plate is rated for pistols at 10 yards, magnum pistols at 25 yards, light rifles (.223, 300BLK, 7.62X39, 5.45X39, etc.) at 30 yards, 50 yards for calibers like 308 Winchester, 100 yards for magnum calibers.

AR550 Steel Is The MINIMUM For Our Products.

Our select grade of AR550 steel is the highest quality we have found on planet earth. Tested and produced to exacting specifications means more reliability, better consistency. Performance is so good, in fact, that the 1/2″ Reduced C Zone Target features a LIFETIME warranty. Buy once, cry NEVER. Spend more time focused on training, less time worrying about your target systems.

Incredible acoustic feedback, high levels of accountability.

Although small in size, the Reduced C Zone Target plate features an amazing ring. Shooters will be able to immediately determine successful hits. The small size also forces a high level of accountability in all shooting scenarios and drills.

Want to buy a full system? Shop HERE.

​

Mount TypeA-DAP Gen 5 Top Bracket (Or Armored Post)
Steel Grade1/2″ or 3/8" AR550 Steel
AssemblyFast, Tool-Less Assembly
Adjustable Lean?Yes. 3 Angles of Adjustment Available Standard
BracketsLaser Cut, CNC Press Brake Formed to Perfect Angles
Approximate Height16″
Approximate Width8″
ShapeReduced C Zone Shape
FinishPowder Coat Finish


Frequently Asked Questions:

Answer: AR500 steel is fine for low volume, long range shooting. It simply is not durable enough for our customer base. Our customers train with fighting weapons at engagement distances. These distances often are as close as 30 yards with rifles. The ONLY solution for this training style is our A-DAP system and 1/2″ AR550 Steel.

Answer: For one, it has an EXTREMELY tight tolerance spec. In other words, lot to lot, each plate is nearly identical in hardness. This is crucial for consistency in performance. We track each heat and lot number and ensure that our customers are getting the most robust systems in the world. We trust the system and steel so much that we placed a lifetime warranty on our 1/2″ target plates.

Answer: Under normal use with our recommended ammo types and distances, these targets are lifetime targets. If users follow all our recommendations and there is a failure, we simply replace the plate. We have a full disclosure of our warranty process at the bottom of our home page. It is rare that we replace products under warranty simply because failures are far and few between. That being said, you can rest assured that if there is a premature failure, we will get you squared away with a new plate fast.

Answer: Our Mini A-DAP system (reduced C Zone) is our most popular target system to date. Some of this is due to the amazing price point and smaller size of the Reduced C Zone. The C Zone is a close runner up to the Mini A-DAP. It really all comes down to preference and objectives. The Mini A-DAP system is better for stressing accountability. The C Zone is great for drills where precision and small size of target isn’t the most critical or as shooters begin to push the distances further out. The C Zone rings louder than the Mini A-DAP, although both ring like bells.

Answer: Technically you “can” do whatever you want. Although we HIGHLY recommend against it. Look, this isn’t a sales pitch: we designed our systems to work well together. From the positioning of the plates, to the lean angle, to the stability of our bases: It was all designed to work as a system. For that reason, we ONLY recommend using our target plates with our top brackets, posts, and bases.

Answer: Pistols at 10 yards. Rifles up to 7.62X39 (ammo 3000 FPS muzzle OR less) 30 yards. Magnum calibers 100 yards+. Ammo must be copper jacket, lead core. Frangible is acceptable as well. Under no circumstances use steel core, penetrator, or armor defeating ammunition.

Maybe. Just in case, be sure not to eat the paint or lick the target before or after you’ve shot it. If you are just curious, led tastes horrible and will probably cause mental damage. If you have done it once you are likely to do it again. Handle at your own risk, if you choose, you may wear an industry grade hazmat suit and gas mask with a HEPA filter and good luck charm on your wrist. For more information visit https://oehha.ca.gov/proposition-65
