AR550 Grounder Target System

https://www.tatargets.com/web/image/product.template/6753/image_1920?unique=b3c270c
(0 review)

GROUNDER PORTABLE STEEL TARGET

The Grounder AR550 system is built for ease, reliability, and performance. Perfect for serious shooters, it offers great value and portability. With a Lifetime ONE Replacement warranty, if it fails under PROPER / APPROVED use, we’ll replace the plate. We’re here for you. Let’s get training!

BAS​IC SPECS:

  • LEGENDARY AR550 Material (Same stuff used in our Armor Piercing Test Videos)
  • Approximately 44 pounds FULLY assembled
  • Target Plate Weighs approximately 24 pounds.
  • Legs (set of two) weigh approximately 20 pounds
  • Powder Coat Finish (Mineral Bronze)
  • Target Plate is approximately 12″W X 24″H (C Zone Shape and Size)
  • Legs pivot and lock into position
  • Locking pin KEEPS legs in position, so moving the target around the range once assembled is easy.
  • Manufactured to exacting standards right here in Pennsylvania.


$ 459.00 459.0 USD $ 459.00

Not Available For Sale

This combination does not exist.

AR550 Steel Targets (Exodus Systems)
Contact Us

Terms and Conditions
Shipping & Returns
Shipping Lead Time: 1-2 weeks

Share

AR550 Grounder - Portable Shooting Target

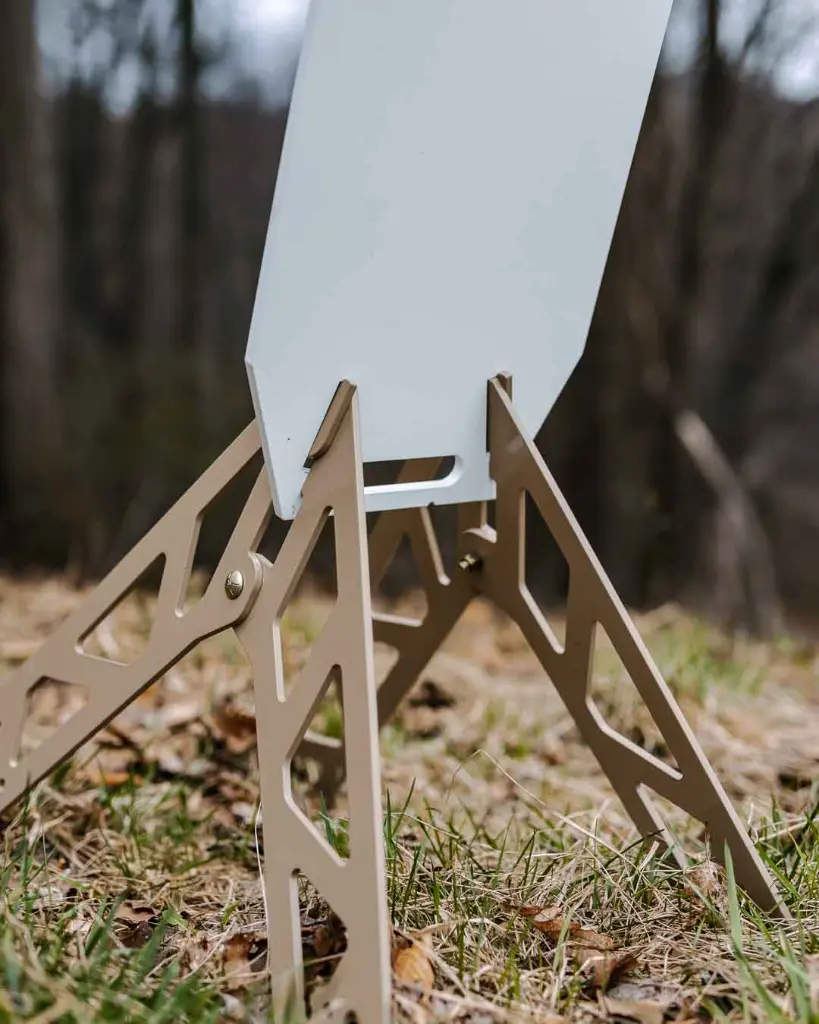

The AR550 Grounder Portable Steel Target is our addition to the world of high class, ultra-portable steel targets. The Grounder is devised from a single piece plate. Additionally, two legs “scissor” into position, through the plate, effectively locking the unit together. Even further, a pin in each leg is installed behind the target plate, allowing seamless transport and movement. The Grounder targets are low to the ground, encouraging a more downward angle of fire on shooting ranges. Further, this keeps the rounds impacting low and into the target or the protective berms of your shooting range.

The Grounder target plate maintains minimal contact between the legs and plate, resulting in a beautiful acoustic ring with every successful impact. Additionally, for transport, the Grounder target legs may be folded and pinned into a collapsed form. The target plate also features a grab handle. The entire premise of this target is portability without the need for wood or metal posts.

AR500 and AR550 Offerings

The Grounder Target is offered in two variations currently. The legs are always manufactured from 1/4″ AR500 steel. For those of you who want to spend less on your target, we offer the Grounder with an AR500 plate dubbed the Grounder 500. Additionally, we offer this AR550 variant of the Grounder strike plate for those of you who demand the utmost in performance.  You will see that the Grounder 500 comes with a limited warranty, much like our Genesis AR500 Target Systems. The Grounder 550 comes with a LIFETIME one replacement warranty of the strike plate! Peace of mind is included with your purchase knowing we have your back. Further, if you EVER have issues with your strike plate, simply notify us and we’ll get you back into action fast. But don’t worry: The Grounder is built for hard use in mind and is built to last.

Material Origins

The Grounder Target System's Legs are all produced from Domestic AR500 steel. Additionally, the legs are 1/4″ Thick. This target system is utilizing with foldable AR500 target stand legs. The Grounder 500 target plate is also domestic AR500 and is 3/8″ Thick. The Grounder 550 utilizes our PREMIUM AR550 Armor for the strike plate. The best of the best material. No, the “other guys” aren’t running the same material.

Built for discerning shooters

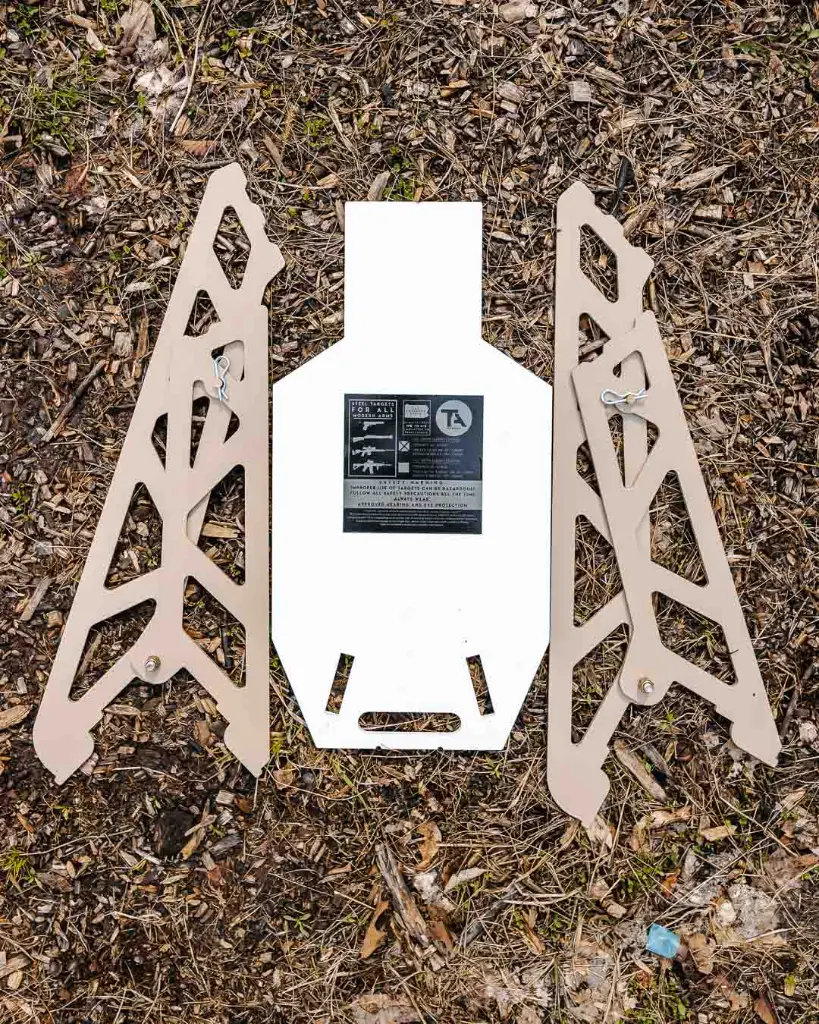

The Grounder 500 and Grounder 550 targets are built for discerning shooters. If you find yourself traveling to your range often, this is the perfect system for you. Additionally, the Grounder is very light (Approximately 44 Pounds Assembled), and packs down to a minimal size. There are only three assemblies to keep track of: (2) sets of legs, and (One) Target Plate. The Target Plate Weighs approximately 24 pounds, the two sets of legs weigh approximately 20 pounds together. Additionally, the Grounder targets feature an aggressive 20 degree forward lean, effectively directly fragmentation to the ground. Further, the legs are designed in such a way as to resist wear and tear from fragmentation. Additionally, the feet of the legs are designed to “bite” into the ground, creating an ultra-stable platform.

High Volume, Hard Use Approved

Whether you are a backyard shooter, or a high volume range running a jungle course, the Grounder Delivers. Further, this aggressive, compact system is ready to serve you for many years to come. Purchase one of the most versatile systems money can buy.

Distance Ratings:

You will receive a user manual detailing all requirements you must follow with your Grounder 550 Order. Basic distance ratings are as follows:

  • Pistols: 10 Yards
  • Magnum Pistols: 25 Yards (Pistol calibers more similar to rifles must follow rifle ratings)
  • LIGHT Rifles: 50 Yards (.223, 5.45X39, 7.62X39, 300 blackout and similar, SO LONG AS MUZZLE VELOCITY IS 3,000 FPS OR LESS!)
  • Standard Short Action Rifles: 100 Yards
  • Magnum Rifles: 200+ Yards

Note: Distance ratings are based on your rifle firing a projectile at 3,000 FPS or LESS at the muzzle. Additionally, for every 100 FPS over 3,000 FPS muzzle velocity, YOU MUST add 25 yards MINIMUM.

Mount TypeUtilizing the Scissoring Grounder Legs (No Posts!)
Steel Grade3/8″ AR550 Steel
AssemblyFast, Simple Assembly
Adjustable Lean?No. Fixed 20 degree forward lean.
ManufacturingLaser Cut for exacting tolerances
Target Plate DimensionsApproximately 12″X24″
Approximate WeightApproximately 48 Pounds Assembled.
Standing HeightApproximately 34″ Tall (Ground to top of plate)
FinishPowder Coated Finish


Frequently Asked Questions:

Answer: No, this is an entirely unique system. While there are MANY targets attempting to do what the Grounder does, the Grounders do it to a whole different level. Better design, better components, and better warranty. In every way, the Grounder exceeds the competition. Further, we utilize a completely novel approach to the design and attachment of the legs versus other systems, further positioning the Grounder Targets as a different class of target system.

Answer: Your Grounder Target will ALWAYS  arrive powder coated. We don’t believe in sending you gross, rusty, crusty targets. Powder coat is an inexpensive step to add protection and elegance to your system. Grounder 500 plates are powder coated mineral bronze. The Grounder 550 target plate is powder coated white. The Grounder Foldable AR500 Legs are always the same color: Grey Beige (Tan).

We manufacture all our systems right here in SE Pennsylvania. The Grounder 500 Target Plate is manufactured from Domestic AR500 material. Additionally, the Grounder legs are also produced from AR500. The Grounder 550 Target Plate is our LEGENDARY Swedish AR550 armor. Second to none, built for high performance.

Answer: You should first establish your end uses. If you mostly shoot pistols, the Grounder 500 is perfect. Further, if you are OK shooting rifles at further distances, the Grounder 500 is a fantastic fit. The Grounder 550 really shines for higher volume applications at closer distances. If that sounds like you, spend the extra money, get the Grounder 550, and never look back. If budget is your primary concern, the Grounder 500 will check your boxes.

Answer: Simply put: Yes! Although for your professional facility, because you cannot completely control ALL rounds sent downrange, we recommend 100 yards minimum for standard rifles. If you can 100% ensure that ALL ammo is proper, you can utilize the closer distances. Otherwise, 100 yards is the best bet.

Answer: Two reasons. First of all, the AR550 material is substantially more expensive than Domestic AR500. Second, you are paying for higher performance and a guarantee that if it fails under proper use, you get a free replacement strike plate. Peace of mind comes easy with the Grounder 550 system.

Maybe. Just in case, be sure not to eat the paint or lick the target before or after you’ve shot it. If you are just curious, led tastes horrible and will probably cause mental damage. If you have done it once you are likely to do it again. Handle at your own risk, if you choose, you may wear an industry grade hazmat suit and gas mask with a HEPA filter and good luck charm on your wrist. For more information visit https://oehha.ca.gov/proposition-65
