A-DAP Steel Target Mount

https://www.tatargets.com/web/image/product.template/6465/image_1920?unique=714a837
(0 review)

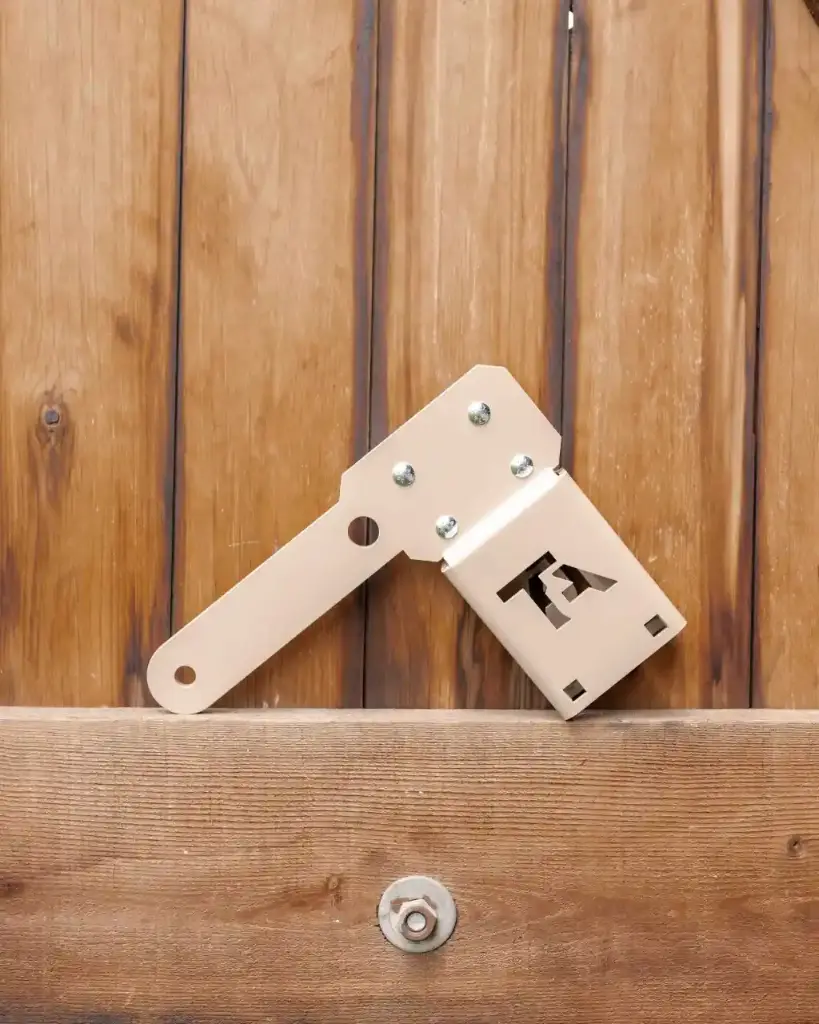

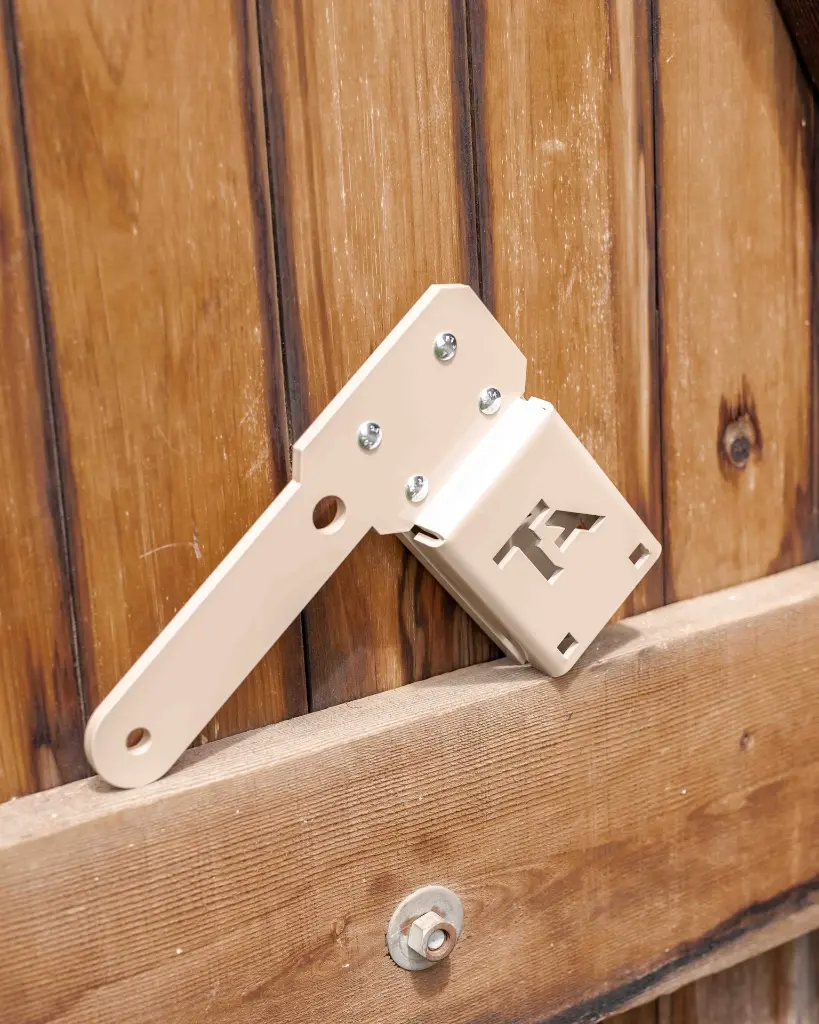

THE A-DAP STEEL TARGET MOUNT IS PURPOSE BUILT FOR OUR A-DAP STEEL TARGET SYSTEMS.

Since 2015, we have been using the A-DAP top bracket to attach our target systems to 2X4 boards, even incorporating its design into our Adjustable armored posts. This bracket ensures that steel target plates are perfectly positioned and swing upon impact, enhancing your training experience with our accessory hostage bracket and paddle.

The Gen 5 A-DAP Top bracket REPLACES all previous versions and is compatible with ANY generation of A-DAP target plates. If your old top bracket is damaged or outdated, upgrade to this one today for improved performance!

WHAT IS INCLUDED:

  • Left side of the Gen 5 Top Bracket
  • Right side of the Gen 5 Top Bracket
  • (4) carriage bolts, washers, and locking nuts
  • (2) 3/8″ Carriage bolts and lock nuts to fasten top bracket into breakdown base for storage

The Gen 5 Top Bracket ships already assembled for your convenience.

$ 75.00 75.0 USD $ 75.00

Not Available For Sale

This combination does not exist.

Finished Top Bracket
Contact Us

Share

A-DAP Steel Target Mount

The A-DAP Steel Target Mount is the latest generation of our A-DAP target mounts. This current generation will work for ALL generations of our silhouette targets. Whenever we release an update or a new product, we put immense effort into commonality. You deserve a new bracket that is backwards compatible. Good news: If your current top bracket is worn out, this Gen 5 version is compatible. Grab one today to keep your systems in action.

New design, new functions.

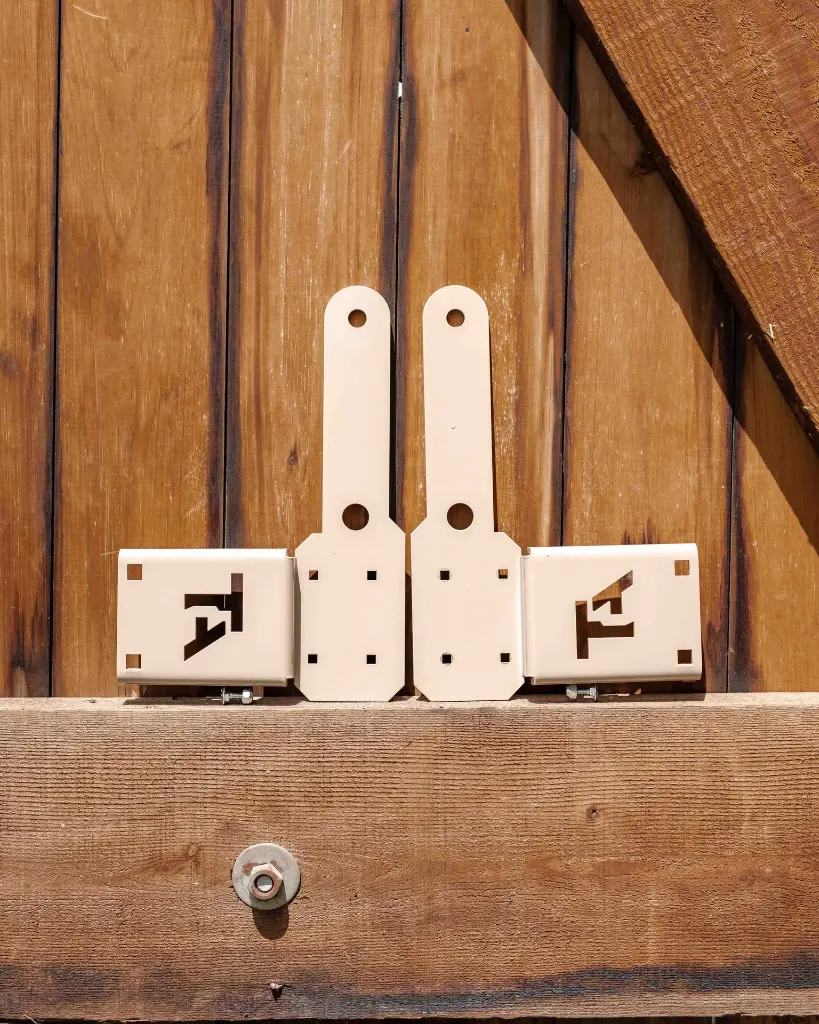

The mount features two halves that are bolted together via (4) included carriage bolts with nuts and washers. This offers a distinct advantage over the welded unit. Previous top brackets were prone to “locking” onto boards if left in extremely damp conditions. The 2X4 boards were swelling and locking themselves into the bracket in these conditions. This was extremely difficult from a serviceability standpoint. Now simply unbolt the bracket from the post in these situations for maintenance.

This new mount is laser cut and CNC formed from 3/16″ steel. Forming is done to exacting standards for consistency and quality.

Backwards compatibility.

The Gen 5 mount is backwards compatible with all generations of our A-DAP system and hostage assemblies.

​

MaterialMild Steel, Laser cut, CNC formed
DiameterApproximately 24″
Assembly required?Ships Assembled
FinishPowder Coat
Material Thickness3/16″
Production Method Laser Cut, CNC formed
Hostage Compatible?Yes, backwards compatible
Hardware Included?Yes.
Approximate Weight10 pounds

Frequently Asked Questions:

Answer: No. We are moving away from welded top brackets in favor of a more refined, more serviceable top bracket like the Gen 5 Top Bracket.

Answer: Yes! If you purchased an A-DAP system from us at ANY time, this top bracket is compatible.

Answer: Yes. You can use the hostage bracket with this new mount.

Answer: No. This is 3/16″ Mild steel that is formed into shape. Bullet impacts WILL cause damage and are not covered under warranty.

All our steel targets are manufactured right here in Pennsylvania. Since the beginning we have been manufacturing our products right here to exacting standards. No Chinese steel, no questionable processes or procedures. Only the best for your range and training.
